ImGuinz2

This project aims to simply and easily build Dear ImGui examples with C and Zig using Dear_Bindings as first step
and one can use many other libaries and examples with less external dependencies (except Raylib library).

DearBindings: v1.92.9b-docking
Dear ImGui: 1.92.9b dock (2026/08)

Try Wasm demo in your browser

Click link for live demo: Click here
alt

See zig_webgl / zig_wgpu examples

Frontends and Backends

Frontends Backends
GLFW3 OpenGL3 / Wasm(WebGL / WebGPU)
SDL3 OpenGL3, SDL3GPU
Win32 DirectX 11(D3D11)

Prerequisites

Available libraries

  Library C Wrapper Date
YES Dear ImGui Dear_Bindings 2024/06
YES ImGui-Knobs CImGui-Knobs 2025/07
YES ImGuiFileDialog CImGuiFileDialog 2025/07
YES ImGui_Toggle CimGui_Toggle 2025/07
YES ImSpinner CImSpinner 2025/07
YES ImGuiColorTextEdit cimCTE 2025/08
YES ImGuizmo CImGuizmo 2025/08
YES ImNodes CImNodes 2025/08
YES ImPlot CImPlot 2025/08
YES ImPlot3d CImPlot3d 2025/08
YES imgui_zoomable_image cimgui_zoomable_image 2026/04
WIP ImGui_Markdown CImGui_MarkDown -
YES STB -
YES Font-Awesome -

Additional examples

Build and run

git clone https://github.com/dinau/imguinz2

cd imguinz2/examples/zig/glfw_opengl3       # for example
make run       # or zig build run --release=fast

See Start your project

Examples screen shots

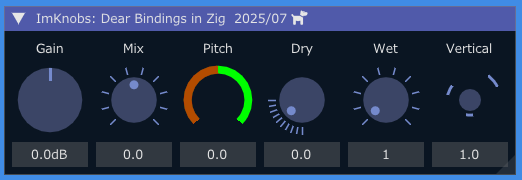

glfw_imknobs

glfw_imknobs

alt

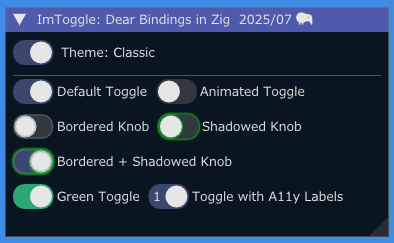

glfw_imtoggle

glfw_imtoggle

alt

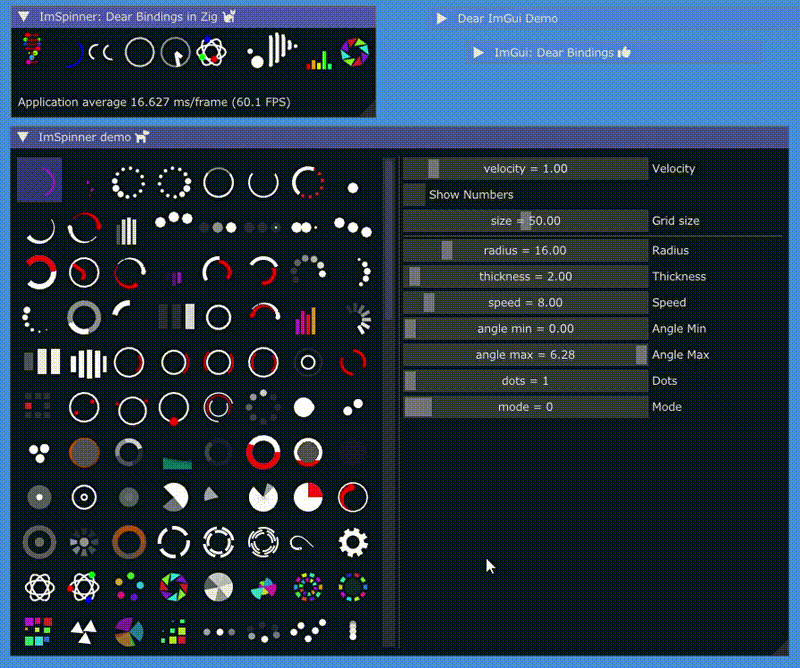

glfw_imspinner

glfw_imspinner

alt

Raylib example

Use zig-0.16.0

First fetch raylib,

zig fetch --save git+https://github.com/raysan5/raylib
raylib_basic

raylib_basic

alt

raylib_cjk

raylib_cjk: Showing multi byte(CJK) fonts

alt

rlImGui

Raylib + ImGui + rlImGui

alt

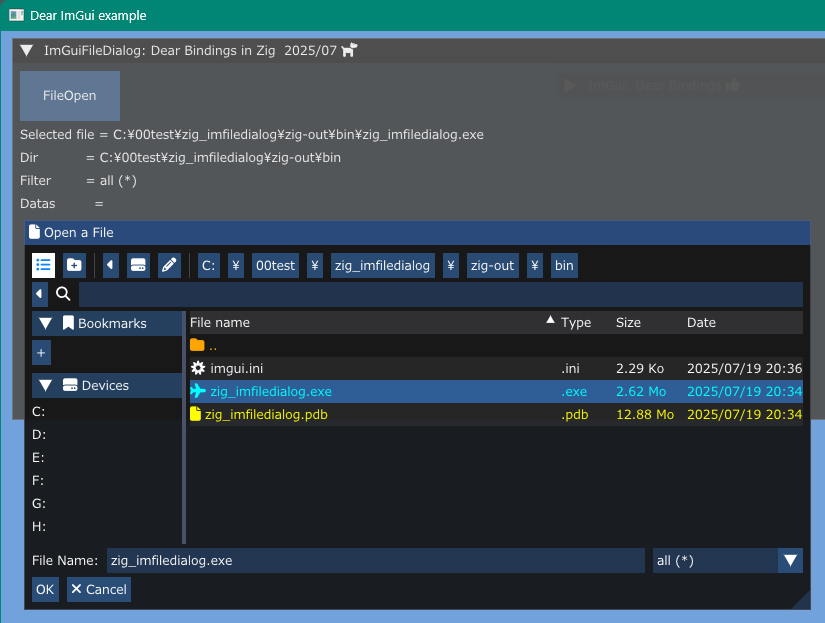

glfw_imfileopendialog

glfw_imfileopendialog

alt

glfw_imgui_markdown

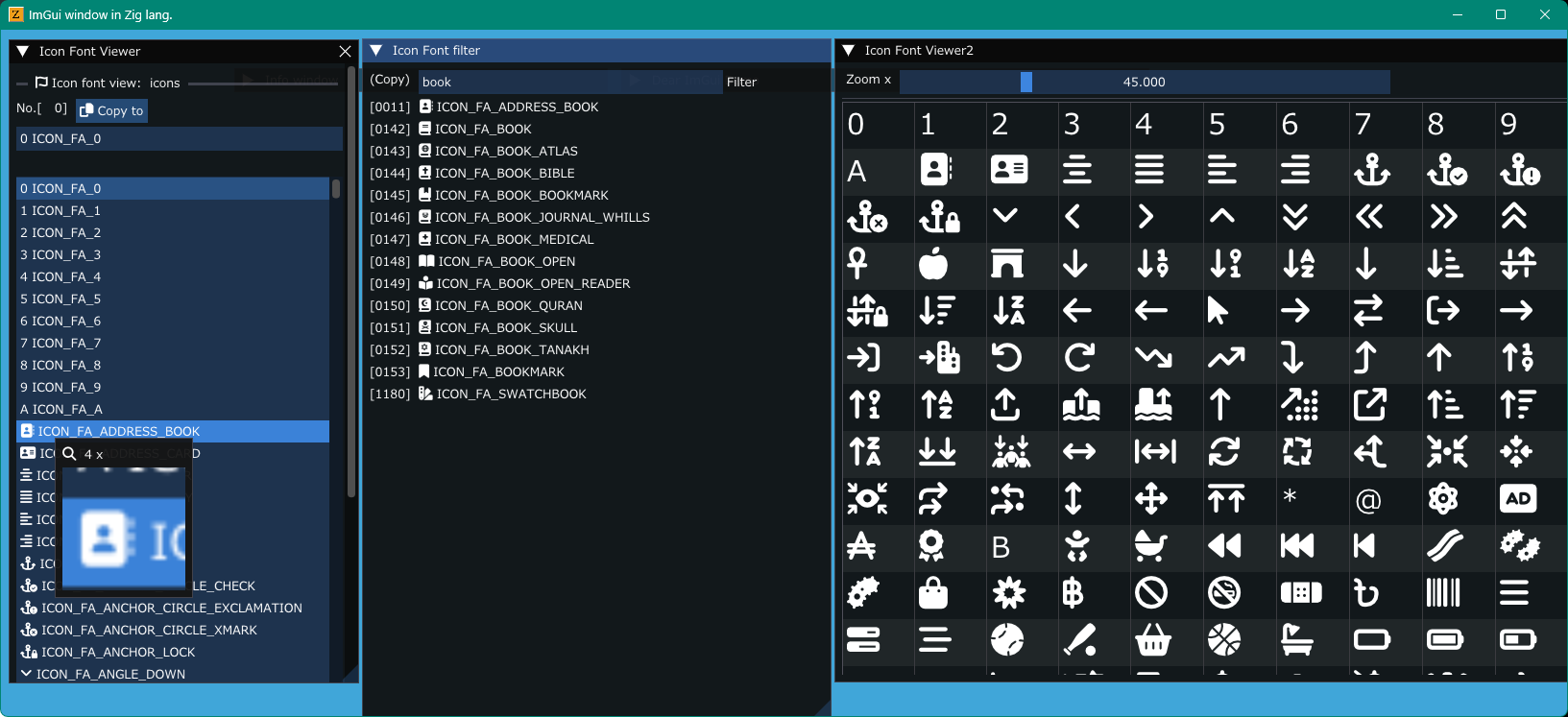

glfw_iconfontviewer

glfw_iconfontviewer

alt

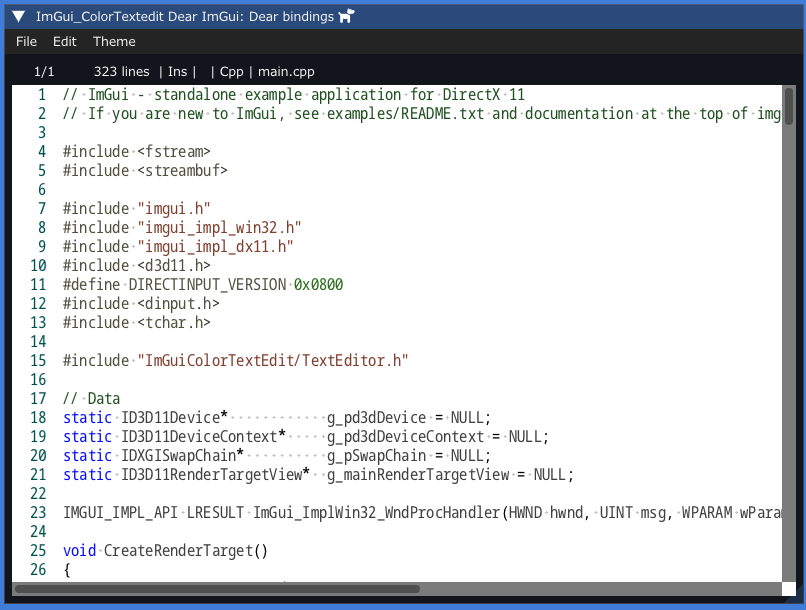

glfw_imcolortextedit

glfw_imcolortextedit

alt

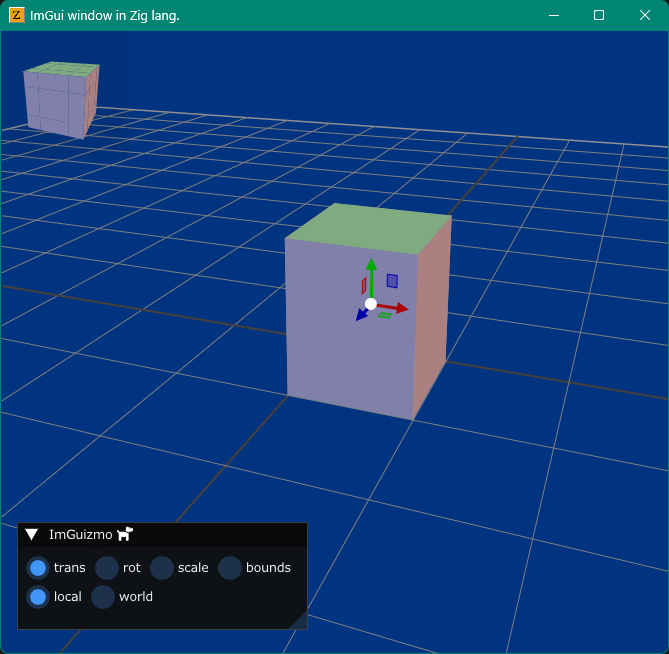

glfw_imguizmo

glfw_imguizmo

alt

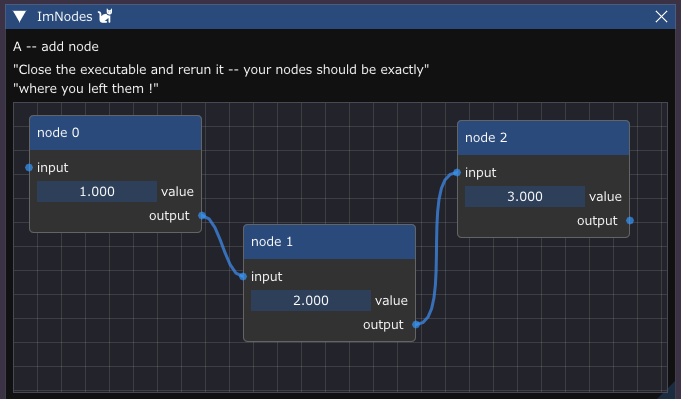

glfw_imnodes

glfw_imnodes

alt

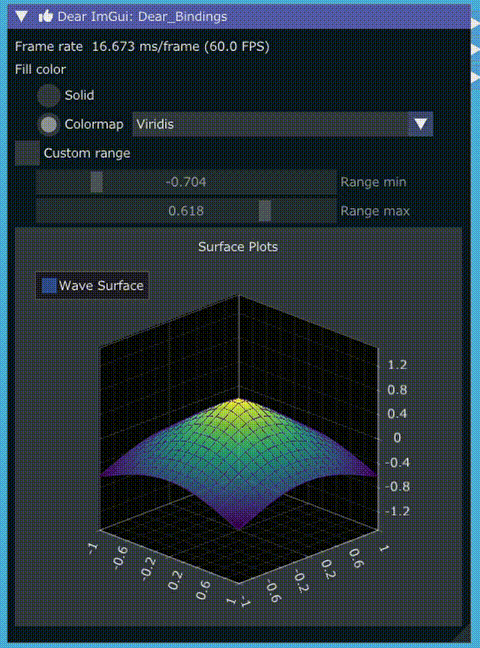

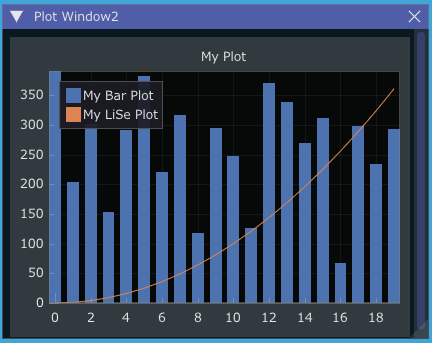

glfw_implot / glfw_implot3d

glfw_implot / glfw_implot3d

glfw_imPlotDemo written in Zig.

alt
alt

Image load / save (OpenGL, SDL3, SDL3GPU)
Language GLFW Magnifing glass Image load /save Note
C glfw_opengl3 - Y
C glfw_opengl3_image - Y

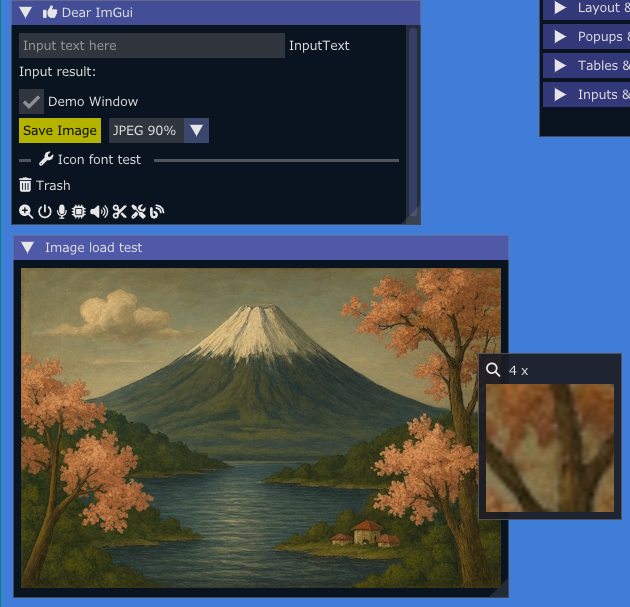

Zig glfw_opengl3_image_load Y Y
Zig sdl3_sdlgup3 - load Download SDL3.dll on Windows and copy to zig-out/bin folder
Zig sdl3_opengl3 - load Download SDL3.dll on Windows and copy to zig-out/bin folder

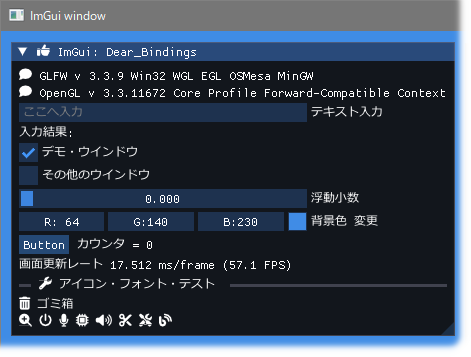

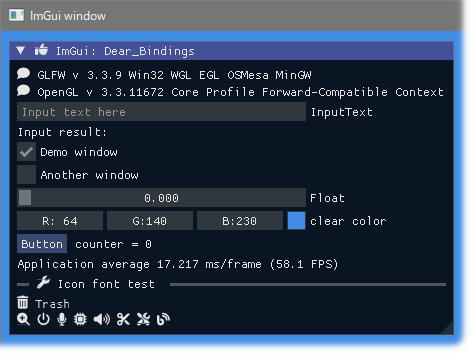

glfw_opengl3
glfw_imgui_zoomable_image

Try Wasm live demo in your browser
Click link for live demo: Click here

glfw_imgui_zoomable_image

alt

zig_webgl
  1. Go to examples/wasm/zig_webgl folder
  2. Run emsdk_env.bat(Windows) or emsdk_env.sh(Linux) in your console

    [!IMPORTANT]

    emsdk_env.bat     # Run this once in every new console

  3. Build WebGL/Wsam example

    make run

    See ./Makefile

  4. You can build native application too

     make app
zig_wgpu

WebGPU wasm example

Basically same as WebGL example

for WebGPU

embuilder build emdawnwebgpu   # Rerun after emsdk updated


emsdk_env.bat  # Run this once in every new console

make run

This example can’t build native applicaton.

Start your project

Use zig-0.17.0

  1. Zig fetch imguinz2

    mkdir myapp
cd myapp
zig init

zig fetch --save git+https://github.com/dinau/imguinz2

  2. Add dependencies to build.zig
    Please insert the following lines above b.installArtifact(exe);.

    const imguinz2 = b.dependency("imguinz2", .{});
const dependencies = .{
    "appimgui",      // Simple app framework
    "imspinner",     // ImSpinner
    "imknobs",       // ImKnobs
    "imtoggle",      // ImToggle
 // "another_lib",
};
inline for (dependencies) |dep_name| {
    const dep = imguinz2.builder.dependency(dep_name, .{
        .target = target,
        .optimize = optimize,
    });
    exe.root_module.addImport(dep_name, dep.module(dep_name));
}
//exe.subsystem = .windows; // Hide console window

    You can set dependencies (additional libraries), see imguinz2/build.zig.zon

    "appimgui"     <- Simple app framework for GLFW and OpenGL backend
"imspinner"    <- ImSpinner
"imguizmo"     <- ImGuizmo
"imknobs"      <- ImKnobs
"imnodes"      <- ImNodes
"implot"       <- ImPlots
"implot3d"     <- ImPlot3D
"imtoggle"     <- ImToggle
"rlimgui"      <- rlImgui
... snip  ...

  3. Edit src/main.zig

    const app = @import("appimgui");
const ig = app.ig;
const spinner = @import("imspinner"); // ImSpinner
const knobs = @import("imknobs"); // ImKnobs
const tgl = @import("imtoggle"); // ImToggle

// gui_main()
pub fn gui_main(window: *app.Window) void {
    var col: f32 = 1.0;
    var fspd: bool = false;
    var speed: f32 = 2.0;
    var spn_col: spinner.ImColor = .{ .Value = .{ .x = col, .y = 1.0, .z = 1.0, .w = 1.0 } };
    while (!window.shouldClose()) { // main loop
        window.pollEvents();
        window.frame(); // Start ImGui frame

        ig.ImGui_ShowDemoWindow(null); // Show ImGui demo window

        ig.ImGui_SetNextWindowSize(.{ .x = 0.0, .y = 0.0 }, 0); // Fit window size depending on the size of the widgets
        _ = ig.ImGui_Begin("Demo", null, 0); // Show demo window
        spinner.SpinnerAtomEx("atom", 16, 2, spn_col, speed, 3);
        ig.ImGui_SameLine();
        _ = tgl.Toggle("Speed", &fspd, .{ .x = 0.0, .y = 0.0 });
        if (fspd) speed = 6.0 else speed = 2.0;
        if (knobs.IgKnobFloat("Color", &col, 0.0, 1.0, 0.05, "%.2f", knobs.IgKnobVariant_Stepped, 0, 0, 10, -1, -1)) {
            spn_col.Value.x = col;
        }
        ig.ImGui_End();

        window.render(); // render
    } // end while loop
}

pub fn main() !void {
    var window = try app.Window.createImGui(1024, 900, "ImGui window in Zig", .{});
    defer window.destroyImGui();

    _ = app.setTheme(.dark); // Theme: dark, classic, light, microsoft

    gui_main(&window); // GUI main proc
}

  4. Build and run

    pwd
myapp

zig build run     # or zig build --release=fast


Hiding console window

SDL libraries

https://github.com/libsdl-org/SDL
https://github.com/libsdl-org/SDL/releases

My tools version

Similar project ImGui / CImGui

Language   Project
Lua Script LuaJITImGui
NeLua Compiler NeLuaImGui / NeLuaImGui2
Nim Compiler ImGuin, Nimgl_test, Nim_implot
Python Script DearPyGui for 32bit WindowsOS Binary
Ruby Script igRuby_Examples
Zig Compiler ImGuinz with CImGui
Zig, C Compiler ImGuinz2 with Dear Binindings

SDL game tutorial Platfromer

ald

Language   SDL Project
LuaJIT Script SDL2 LuaJIT-Platformer
Nelua Compiler SDL2 NeLua-Platformer
Nim Compiler SDL3 / SDL2 Nim-Platformer-sdl2/ Nim-Platformer-sdl3
Ruby Script SDL3 Ruby-Platformer
Zig Compiler SDL3 / SDL2 Zig-Platformer

  1. Except Raylib examples ↩

  2. $ emsdk list # Show version list ↩
